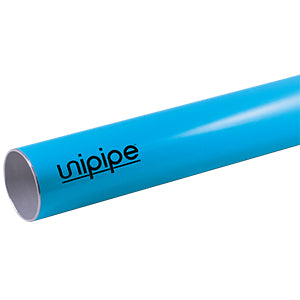

3/4" (20mm) UnipipeAIR Pipe

3/4" (20mm) UnipipeAIR Pipe

UATT0.020600
232 PSI (16 bar)
  • 19' (5.8M) Section
  • Weight: 2.1 lbs
  • For Compressed Air (also rated for oils and coolants)
  • Max Working Pressure 232 PSI (16 bar)

Quantity:
-
+
$55
Are you a reseller? Learn more about our quote generator

We offer special pricing for resellers! Our quote generator lets you create quotes for end users with reseller discounts applied. Simply submit the quote generator form at checkout, and we'll send you a finalized quote.

Made in Spain
20 Year Warranty
View UPS-compatible Option download button icon Download Manual

Product Specifications

Max Working Pressure
232 PSI (16 bar)
Plant Testing Pressure 1 hour at 20°C
348 PSI (24 bar)
Quality Testing Pressure 1 hour at 20°C
928 PSI (64 bar)
Continuous Working Temperature
From -4°F to 212°F (-20°C up to 100°C)
Max Working Temperature
From -22°F Up to 266°F (-30°C Up to 130°C)
Thread Standard
NPT National Pipe Thread complying to ANSI B1.20.1
Aluminium Pipe Mechanical Resistance
According to EN-755-2/2008 standards
Pipe Material
Aluminium Alloy EN AW 6060 - T5 according to EN 755-2/2008
Aluminium Fittings Material
Aluminium Alloy EN Aw 6061 T6
O-Ring & Lip Gasket Material
HNBR 65°/75° Shore A
Clamp Ring Material
AISI 304 Stainless Steel

3/4" (20mm) UnipipeAIR Pipe: The Foundation of Your Compressed Air System

The 3/4" (20mm) UnipipeAIR Pipe is the perfect choice for building reliable and efficient compressed air systems. This lightweight, durable aluminum pipe delivers exceptional performance and ease of installation, making it ideal for a wide range of applications.

UnipipeAIR is designed for compressed air, but it's also rated for oils and coolants, making it a versatile solution for various fluid handling needs. Its 232 PSI (16 bar) pressure rating ensures it can handle even demanding applications while maintaining a consistent and reliable flow.

Each 19' (5.8M) section weighs just 2.1 lbs, making it easy to handle and install. Unipipe's unique modular design allows for quick and simple assembly, requiring only basic tools. The proprietary clamp ring system ensures secure and leak-proof connections, eliminating the need for time-consuming and messy traditional methods.

With its exceptional strength, versatility, and ease of installation, the 3/4" (20mm) UnipipeAIR Pipe is the smart choice for building reliable and efficient compressed air systems that meet your specific needs.
