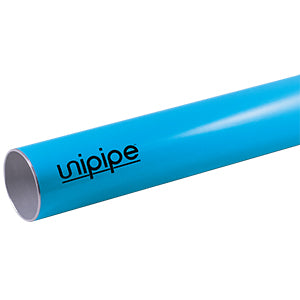

1" (25mm) Compressed Air Pipe - 232 PSI | Unipipe

1" (25mm) Compressed Air Pipe - 232 PSI (16 bar)

UATT0.025600
232 PSI (16 bar)
  • 19' (5.8M) Section
  • Weight: 2.9 lbs
  • For Compressed Air (also rated for oils and coolants)
  • Max Working Pressure 232 PSI (16 bar)
Quantity:
-
+
$65
Are you a reseller? Learn more about our quote generator

We offer special pricing for resellers! Our quote generator lets you create quotes for end users with reseller discounts applied. Simply submit the quote generator form at checkout, and we'll send you a finalized quote.

Unipipe Product Warranty - 20 Years
Manufactured by EQOfluids. Made in Spain
Exceptionally Secure Joints
Very Simple and Quick to Install

Product Specifications

Max Working Pressure
232 PSI (16 bar)
Plant Testing Pressure 1 hour at 20°C
348 PSI (24 bar)
Quality Testing Pressure 1 hour at 20°C
928 PSI (64 bar)
Continuous Working Temperature
From -4°F to 212°F (-20°C up to 100°C)
Max Working Temperature
From -22°F Up to 266°F (-30°C Up to 130°C)
Thread Standard
NPT National Pipe Thread complying to ANSI B1.20.1
Aluminium Pipe Mechanical Resistance
According to EN-755-2/2008 standards
Pipe Material
Aluminium Alloy EN AW 6060 - T5 according to EN 755-2/2008
Aluminium Fittings Material
Aluminium Alloy EN Aw 6061 T6
O-Ring & Lip Gasket Material
HNBR 65°/75° Shore A
Clamp Ring Material
AISI 304 Stainless Steel

1" UnipipeAIR Pipe: The Versatile Solution for Your Needs

The 1" UnipipeAIR Pipe is the perfect solution for a wide range of compressed air applications. Its versatility, durability, and ease of installation make it a top choice for workshops, industrial facilities, and everything in between.

Engineered specifically for compressed air, its 232 PSI pressure rating ensures it can handle demanding applications without compromising performance.

UnipipeAIR's lightweight design makes it easy to handle and install, even in tight spaces. The modular design allows for quick and simple assembly, saving you valuable time and labor costs. The patented clamp ring system ensures secure and leak-proof connections, eliminating the need for time-consuming traditional methods.
